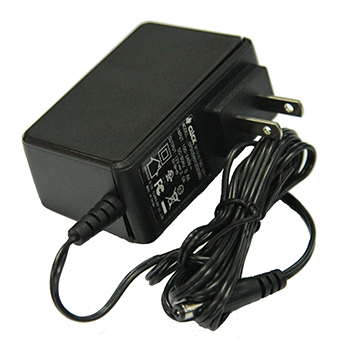

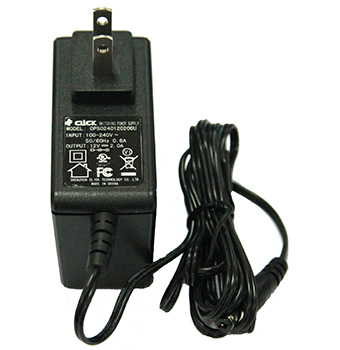

Application range: communication network terminal
Product Features:
► Universal AC Input / Full Range
► 24W Constant Voltage Circuit
► Protections Mode: OVP, OCP and SCP
► Light Weight, Small Volume
► High Reliability, MTBF > 100Khrs
► Compliance with Energy level VI
► 3 Years Warranty
Electrical Parameter | Environment & Safety Specification | ||
Input Voltage Range | 90-264Vac | Operating Temperature | 0℃~40℃ |
Input Frequency | 50/60Hz | Storage Temperature | -20℃~ 70℃ |
Power Factor | >0.9 | Storage Humidity | 5~95% |
Inrush Current | <60A | Cooling Mode | Natural Cooling |
Hold up Time | >8mS | MTBF | ≧100,000Hrs @40℃ (MIL-HDBK-217F) |
Turn on Delay(s) | <3 | Surge Voltage | ±6KV |
Rated Output Voltage | 12Vdc | Insulation Voltage | 3KVac @ Primary v.s. Secondary |
Max. Output Current | 2A | Insulation Resistance | >20Mohm @ Primary v.s. Secondary @ 500Vdc |
Output Voltage Tolerance | <±5% | Leakage Current | <250uA |
Ripple and Noise (Vpp) | <200mV | Safety Mark & Standards Complicance | UL/cUL, CB, IEC60950, UL60950 |
Efficiency (%) | >86.2% (Energy level VI) | EMC & EMI Standards Complicance | FCC Part 15 Class B; EN55022 |
Static Loss | <0.1W | Dimension (L*W*H) | 76.7*46.5*33.5mm |
Protection Function | OVP, OCP, SCP |
